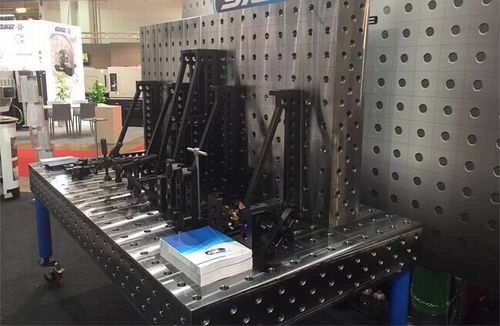

Modular Welding Table

Modular Welding Table
Modular Welding Table
Product Code : YHD16S2010
Brand Name : YAHANDA
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 1800 - 2500 USD ($)
Product Specifications
  • Type
  • Modular welding fixtures
  • Condition
  • New
  • Material
  • High quality steel and Cast iron
  • Usage
  • reuse for different welding clamping and save cost
  • Dimensions
  • 2000X1000X850 Millimeter (mm)
Product Description

 3D Modular Welding Table system has a full and diversity range of tables and clamping & fixturing tools, these clamps and fixtures can be installed on any working surface of 3d welding table. The existed working area can be enlarged via 4 side surfaces with other connection blocks anywhere and anytime. In some situation, big working surfaces combined by some connection blocks can save much cost. Diversity clamps and fixtures with a table can match freely to meet many different structures welding fixing requirement and make all done well in low cost.

 Technical Parameters:



3D Modular Welding tables / 3 Series

Working surfaces

Side surface height (mm)

Plate Thickness (mm)

Bore Size (mm)

Grid Pattern (mm)

D28

5

200

25

28

100x100

D22

5

150

18

22

75x75

D16

5

100

14

16

50x50


Features:

  • No maintenance required
  • Rust resistant
  • Highly reusability
  • High Quality Material
  • Easy to use

Position can be changed as required. And several tables can be connected together and extended by U-shape cube case for large welments.

Product specifications:

     Model No.                  Sizes(mm)                  Model No.              Sizes(mm)

YHD-D28-S1010    1000x1000x200mm   /   YHD-D16-S1050   1000x500x100mm

YHD-D28-S1212    1200x1200x200mm   /   YHD-D16-S1010   1000x1000x100mm

YHD-D28-S1515    1500x1500x200mm   /   YHD-D16-S1015   1000x1500x100mm

YHD-D28-S2010    2000x1000x200mm   /   YHD-D16-S1020   1000x2000x100mm

YHD-D28-S2412    2400x1200x200mm   /   YHD-D16-S1212   1200x1200x100mm

YHD-D28-S3015    3000x1500x200mm   /   YHD-D16-S1515   1500x1500x100mm

YHD-D28-S4020    4000x2000x200mm   /   YHD-D16-S2412    2400x1200x100mm

Packing & Shipping:

Packed by non-solid wooden boxes, worthy to transportation by sea, air or trucks. And also can be packed as customers’ detailed requirements.

We provide:

1. Pre-sales service: such as designing welding solutions and configurate welding table and fixturing tools for customers according to their products. And advices for tools selections.

2. After-sales services: Using directions, maintainance methods and supports, equipment Installations.

3. Offering product samples.

4. Product customization and unstandard parts or products designing according to customers's requirements and expected efficiency.


Trade Information
  • Payment Terms
  • Cash in Advance (CID), Paypal, Western Union, Cash Advance (CA), Telegraphic Transfer (T/T)
  • Supply Ability
  • 120sets Per Month
  • Delivery Time
  • 7-10 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Packed by non-solid wooden boxes, worthy to transportation by sea, air or trucks. And also can be packed as customers’ detailed requirements.
  • Main Export Market(s)
  • Africa, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Certifications
  • BCTC-160505634C
